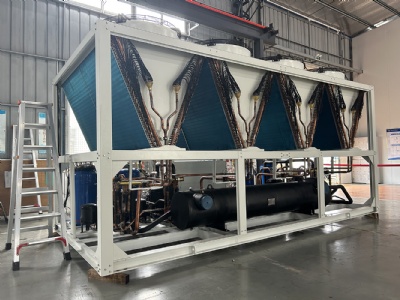

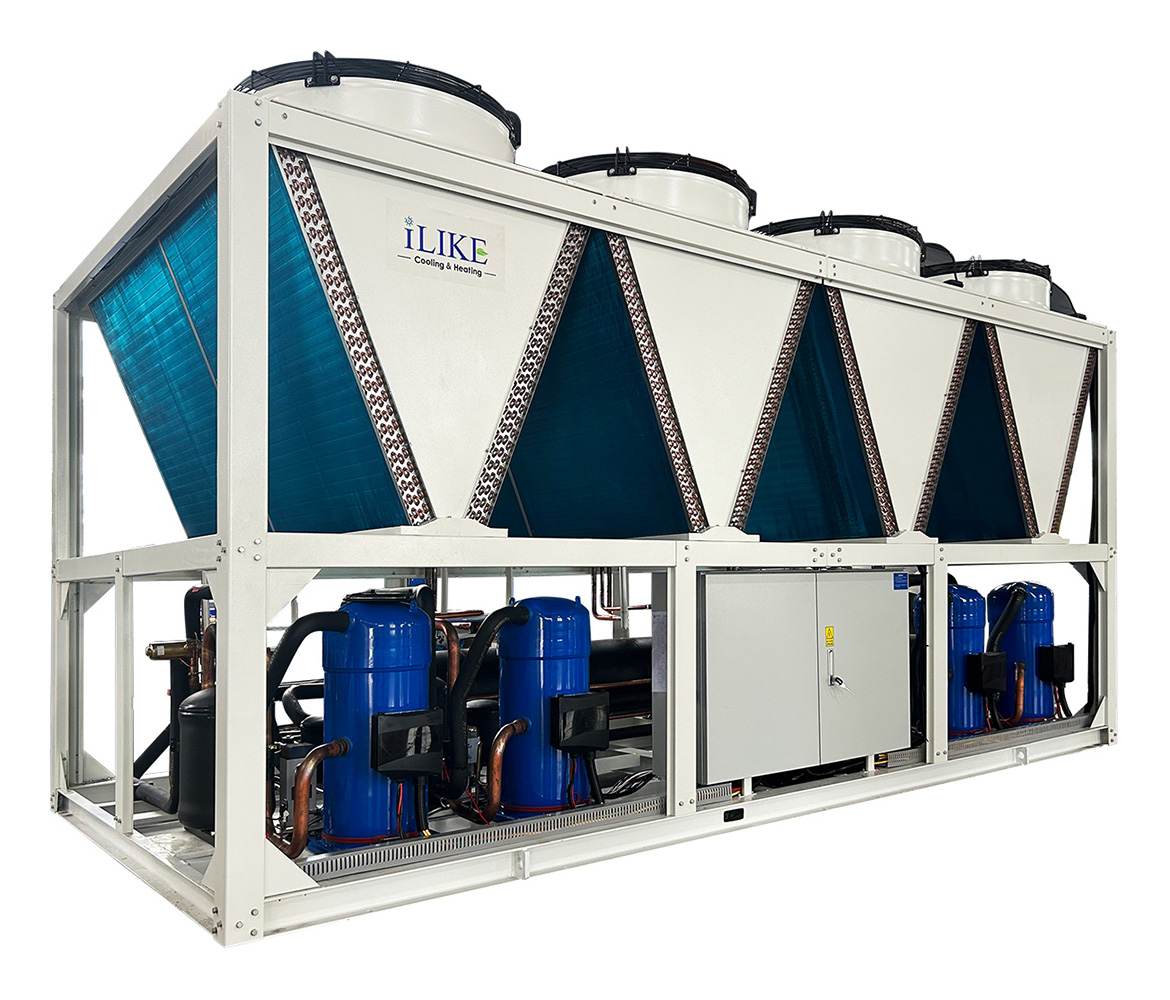

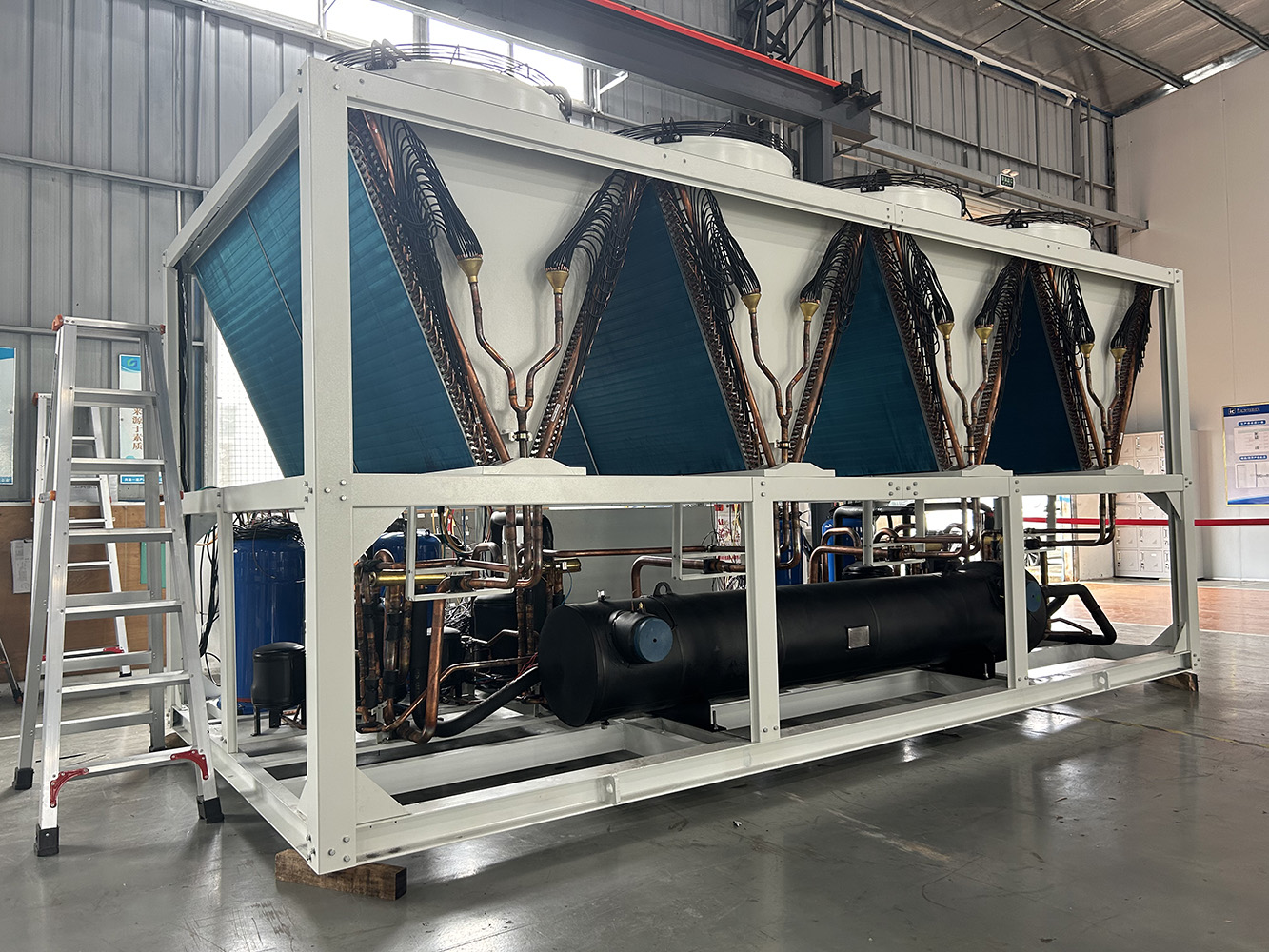

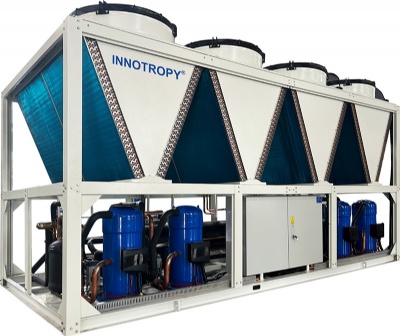

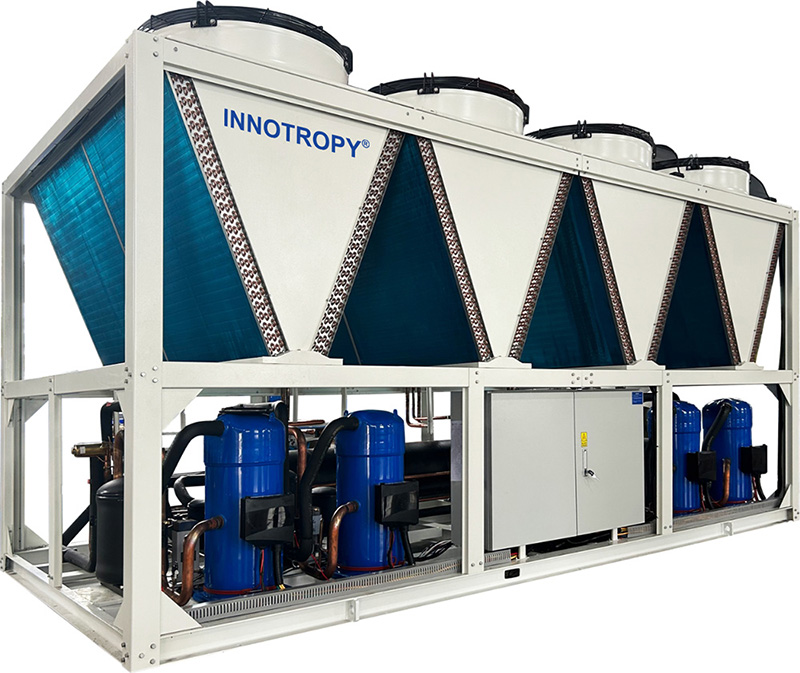

Air Cooled Chiller 330KW/440KW
-
Standard :
- 1. Modular design ,one wired controller control max 8 nos chiller ;
- 2. Shell tube water heat exchanger;
- 3. Danfoss scroll compressor;
- 4. IP54 condensing fan ;
- Optional :
- 1. T3 climate chiller ;
- 2. Inverter compressor /EC fan ;
- 3. Winter cooling function;
- 4. 7' touch screen;
- 5. Total heat recovery ;
- 6 .Water pump ;
- 7. EVI compressor for better heating performance in low ambient temperature
-
ILIKE Air Cooled Scroll Chiller Specifications
Air Cooled chiller with Danfoss standard compressor
| Model | Cooling only | LKAC-1200C | LKAC-1600C | ||
| Heat pump | LKAC-1200HP | LKAC-1600HP | |||
| Cooling | Rated capacity | kW | 330 | 440 | |
| Rated power | kW | 105 | 140 | ||
| EER | W/W | 3.14 | 3.14 | ||
| Heating | Rated capacity | kW | 339 | 452 | |
| Rated power | kW | 106 | 141 | ||
| COP | W/W | 3.20 | 3.21 | ||
| Rated running current | A | 180.0 | 235.0 | ||
| Max. input current | A | 249.0 | 323.0 | ||
| Power supply source | 380V-415V/3PH/50HZ | ||||
| Electric shock resistance | Ⅰ | ||||
| IP level | IPX4 | ||||
| Refrigerant | R410A | ||||
| Cooling operation climate | ℃ | 5~48 | |||
| Heating operation climate | ℃ | -15~48 | |||
| Pipe diameter | DN125（Flange） | DN125（Flange） | |||
| Water flow rate | m3/h | 56.8 | 75.7 | ||
| WPD | kPa | 55.0 | 55.0 | ||
| Compressor | Copeland Scroll | ||||
| Compressor quantity | 3 | 4 | |||
| Air discharge | Top discharge | ||||
| Fan | Low noise axial fan | ||||
| Air flow | m3/h | 23000x6 | 23000x8 | ||
| Noise level | dB（A） | ≦76 | ≦78 | ||
| Unit weight | kg | 2600 | 3400 | ||
| Dimensions | Length | mm | 3550 | 4630 | |
| Width | mm | 2250 | 2250 | ||
| Height | mm | 2450 | 2450 | ||
Air Cooled chiller with Danfoss EVI compressor
| Model | Heat pump | LKAC-600HP | LKAC-2000HP | ||
| Cooling | Rated capacity | kW | 145 | 496 | |
| Rated power | kW | 46.2 | 158.5 | ||
| EER | W/W | 3.14 | 3.13 | ||
| Heating | Rated capacity | kW | 152 | 506 | |
| Rated power | kW | 47.5 | 159.6 | ||
| COP | W/W | 3.20 | 3.17 | ||
| Capacity adjustment | % | 0/50/100 | 0/25/50/75/100 | ||
| Rated running current | A | 92.0 | 255.0 | ||
| Max. input current | A | 108.3 | 379.0 | ||
| Power supply source | 380V-415V/3PH/50HZ | ||||
| Electric shock resistance | Ⅰ | ||||
| IP level | IPX4 | ||||
| Refrigerant | R410A | ||||
| Cooling operation climate | ℃ | 5~48 | |||
| Heating operation climate | ℃ | -30~30 | |||
| Pipe diameter | DN75（Flange） | DN125 | |||
| Water flow rate | m3/h | 25.8 | 86.6 | ||
| WPD | kPa | 45.0 | 85.0 | ||
| Compressor | Copeland/Danoss Scroll | ||||
| Compressor quantity | 2 | 4 | |||
| Air discharge | Top discharge | ||||
| Fan | Low noise axial fan | ||||
| Air flow | m3/h | 23000x2 | 23000x8 | ||
| Noise level | dB（A） | ≦69 | ≦78 | ||
| Unit weight | kg | 815 | 3375 | ||
| Dimensions | Length | mm | 2200 | 4630 | |
| Width | mm | 1150 | 2250 | ||
| Height | mm | 2220 | 2450 | ||
Note：
1.Nominal cooling capacity test condition : water inlet/outlet temperature are 12°C/7°C ,ambient temperature 35°C.
2.Nominal heating capacity test condition : water inlet/outlet temperature are 40°C/45°C ,ambient temperature 7°C/6°C.
3.The specifications in the table are subject to change due to changes in the product design of the manufacturer without prior notice.
