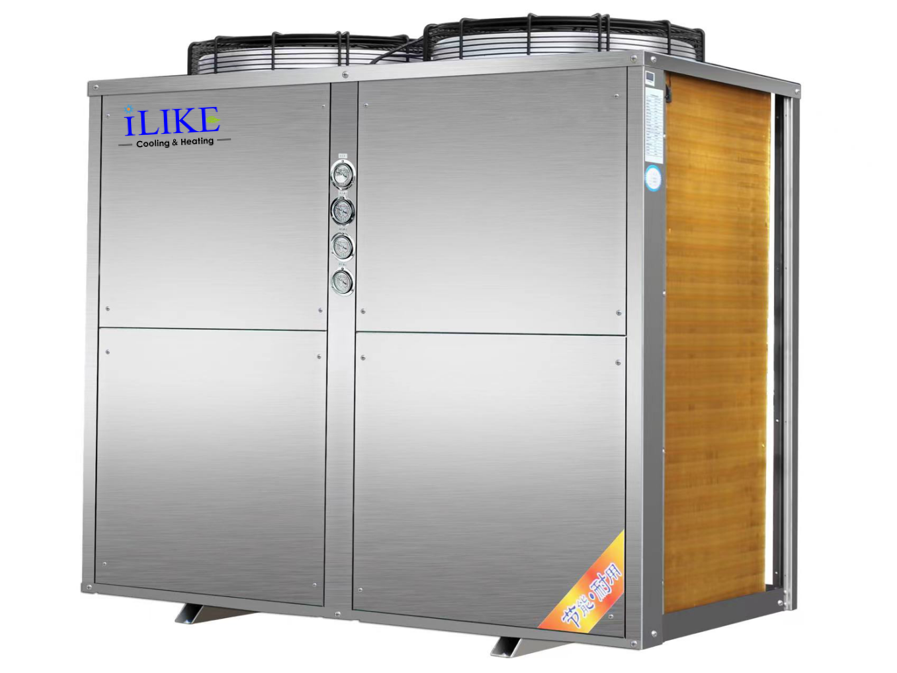

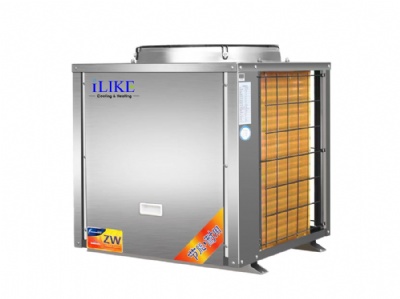

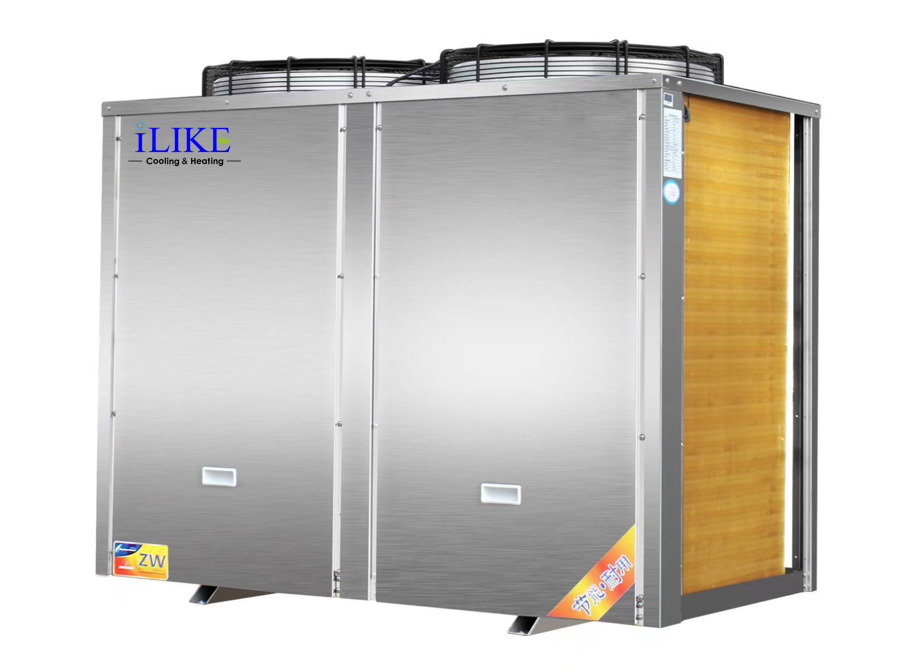

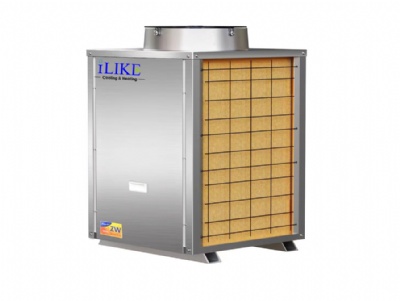

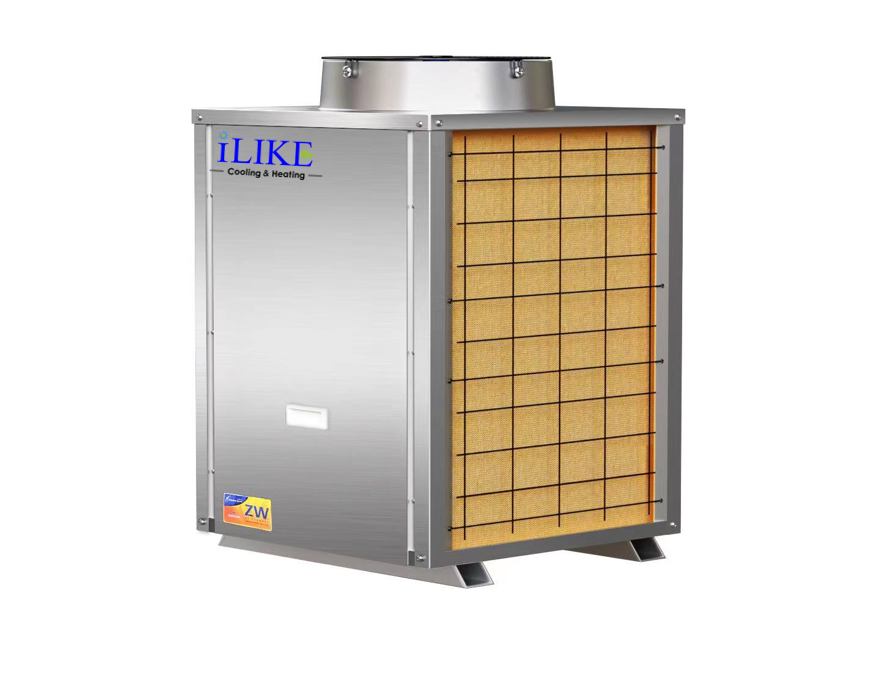

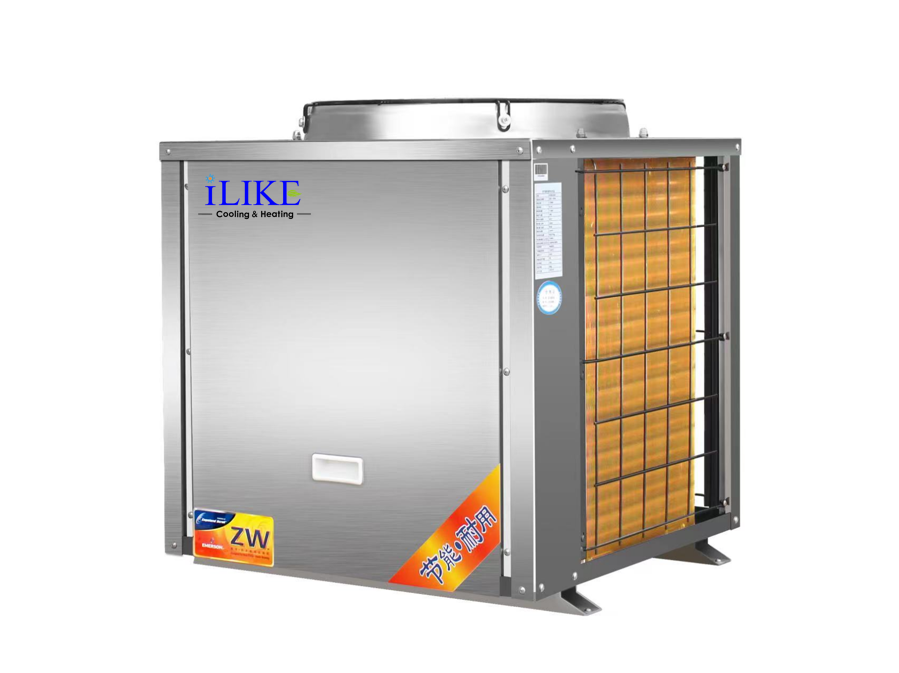

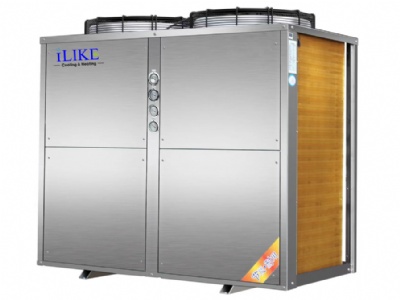

Commercial Heat Pump Water Heater
-
1.Copeland compressor
- 2.Higher efficiency tube in tube heat exchanger
- 3.Anti-corrosion titanium tube heat exchanger
- 4.Inner grooved copper tube with golden hydrophilic aluminum fins
- 5.SS 304 casing
- 6.IP54 axial condensing fan
- 7.Sanhua electronic expansion valve
- 8.R410A refrigerant
- 9.Antifreezing protections
- 10.Qualified water flow switch
-
ILIKE Commercial Heat Pump Water Heater Specifications
ILIKE commercial heat pump water heater provides maximum energy efficiency and reliability. Thank to intelligent control ,ILIKE commercial heat pump water heater supplies maximum 60 C hot water at 24hours *7 days , and maintaining a constant temperature in water tank and swimming pools ,such as the applications of hotels, hospitals, schools, sports centers, gyms, and so on.
Commercial Heat Pump Water Heater
| Model | LKHP030-HW | LKHP050-HW | LKHP070-HW | LKHP100-HW | LKHP150-HW | LKHP200-HW | LKHP250-HW |
| Operating air temperature (℃) | -10~45 | ||||||
| Performance Condition: Air temperature DB/WB 20°C/15°C, Water initial temperature 15°C,Water end temperature 55°C | |||||||
| Heating capacity (kW) | 9.5 | 15.8 | 22.5 | 33.0 | 47.6 | 64.6 | 79.1 |
| Water produce volume (L/H) | 205 | 340 | 485 | 709 | 1023 | 1389 | 1699 |
| Consumed power (kW) | 2.66 | 4.4 | 6.26 | 9.22 | 13.3 | 17.8 | 21.8 |
| Rated current (A) | 12.7 | 21 | 12.5 | 18.5 | 26.6 | 35.7 | 43.6 |
| COP | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Power supply | 220-240V/1 Ph/50Hz | 380-400V/3 Ph/50Hz | |||||
| Max power input (kW) | 3.70 | 6.20 | 8.80 | 12.90 | 18.60 | 24.90 | 30.50 |
| Max current （A） | 17.80 | 29.50 | 17.60 | 25.80 | 37.20 | 49.90 | 61.10 |
| Max water outlet temperature (°C) | 60 | ||||||
| Water flow (m³/h) | 2.0 | 3.4 | 4.8 | 7.1 | 10.2 | 13.9 | 17.0 |
| Water Pressure Drop (max) kPa | 40 | 50 | 75 | 68 | 78 | 80 | 85 |
| Sound pressure at 1m dB(A) | 52 | 55 | 56 | 66 | 68 | 70 | 72 |
| Water Connection (mm) | DN25 | DN32 | DN40 | DN50 | |||
| Heat exchanger | Tube in tube | ||||||
| Casing | SS 304 | ||||||
| Refrigerant | R410A | ||||||
| Compressor | Copeland | ||||||
| Four-way valve | Sanhua | ||||||
| Expansion valve | Sanhua | ||||||
| Net weight/Gross weight（kg) | 90/95 | 135/142 | 180/190 | 280/295 | 380/400 | 560/590 | 660/700 |
| Package size (mm) | 710*710*840 | 750*750*1110 | 810*810*1110 | 1500*700*1080 | 1500*700*1080 | 1850*1000*1950 | 2000*1100*2080 |
Commercial Swimming Pool Heat Pump
| Model | LKHP020H-PHP | LKHP030H-PHP | LKHP050H-PHP | LKHP100H-PHP | LKHP150H-PHP | LKHP200H-PHP | LKHP250H-PHP |
| Advised pool volume (m3) | 20~40 | 25~50 | 40~85 | 80~170 | 120~250 | 150~300 | 210~400 |
| Operating air temperature (℃) | -10~45 | ||||||
| Performance Condition: Air temperature DB/WB 20°C/15°C, Water outlet temperature 28°C | |||||||
| Heating capacity (kW) | 7.7 | 13.5 | 22.8 | 45.7 | 68.6 | 91.5 | 114.5 |
| Consumed power (kW) | 1.78 | 2.4 | 4 | 8.2 | 12.0 | 16.0 | 20.0 |
| Rated current （A） | 8.5 | 11 | 7.2 | 14.7 | 21.5 | 28.6 | 36.0 |
| COP | 4.3 | 5.6 | 5.7 | 5.6 | 5.7 | 5.7 | 5.7 |
| Heat exchanger | Spiral titanium tube in PVC | ||||||
| Casing | SS 304 | ||||||
| Power supply | 220-240V/1 Ph/50Hz | 380-400V/3 Ph/50Hz | |||||
| Water Connection (mm) | DN50(PVC inner thread) | DN63(PVC inner thread) | DN75(PVC inner thread) | ||||
| Advised water flow (m³/h) | 2.2 | 3.3 | 5.6 | 11.1 | 16.7 | 22.3 | 27.9 |
| Water Pressure Drop (max) kPa | 50 | 50 | 50 | 45 | 45 | 50 | 50 |
| Net weight/Gross weight（kg) | 60/70 | 95/105 | 135/150 | 290/310 | 380/400 | 560/590 | 660/700 |
| Package size（mm）（Polywood） | 1000*365*560mm | 710*710*860 | 810*810*1080 | 1500*800*1560 | 1850*1000*1950 | 2000*1100*2080 | |
| Refrigerant | R410A | ||||||
| Compressor | Copeland | ||||||
| Four-way valve | Sanhua | ||||||
| Expansion valve | Sanhua | ||||||
