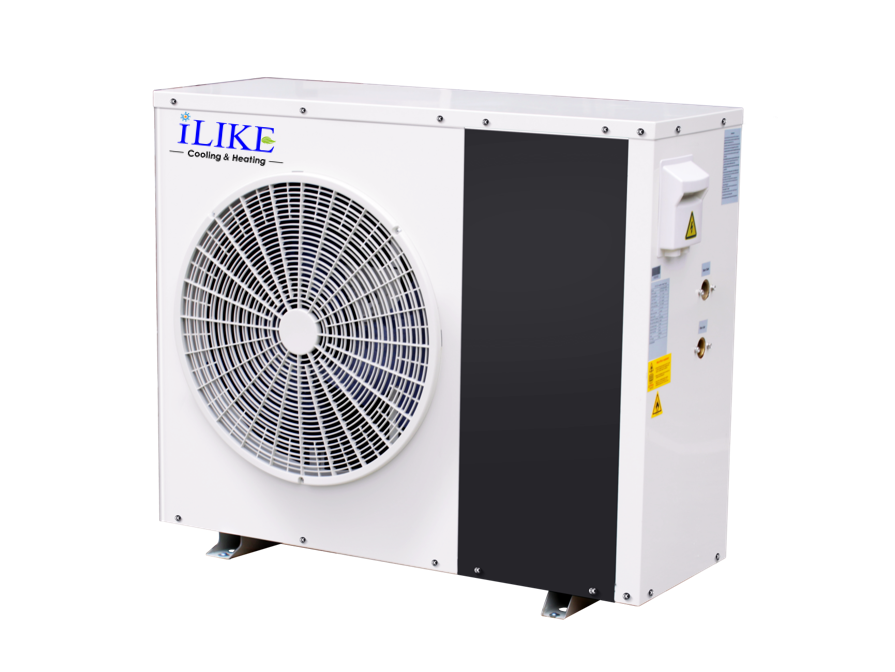

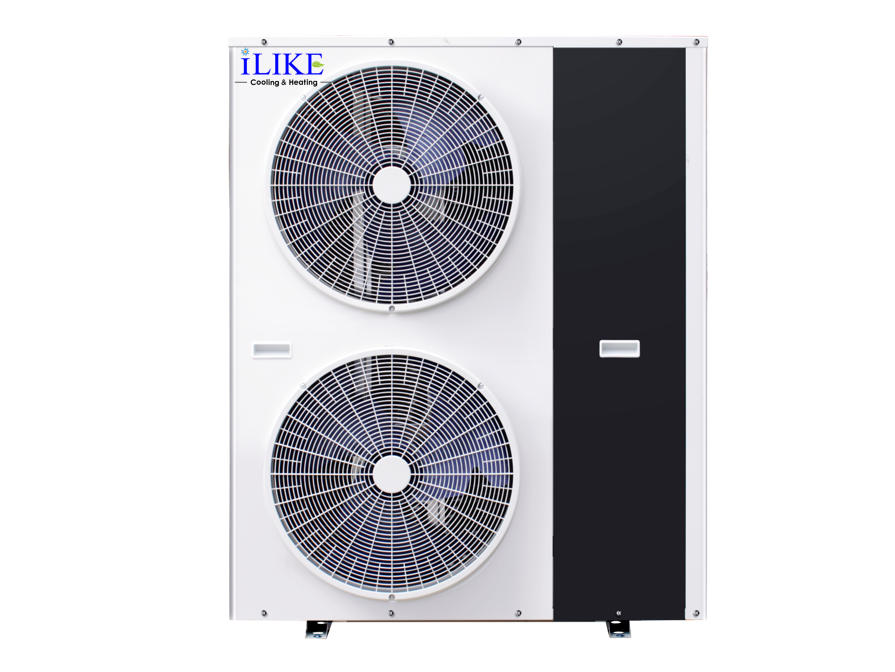

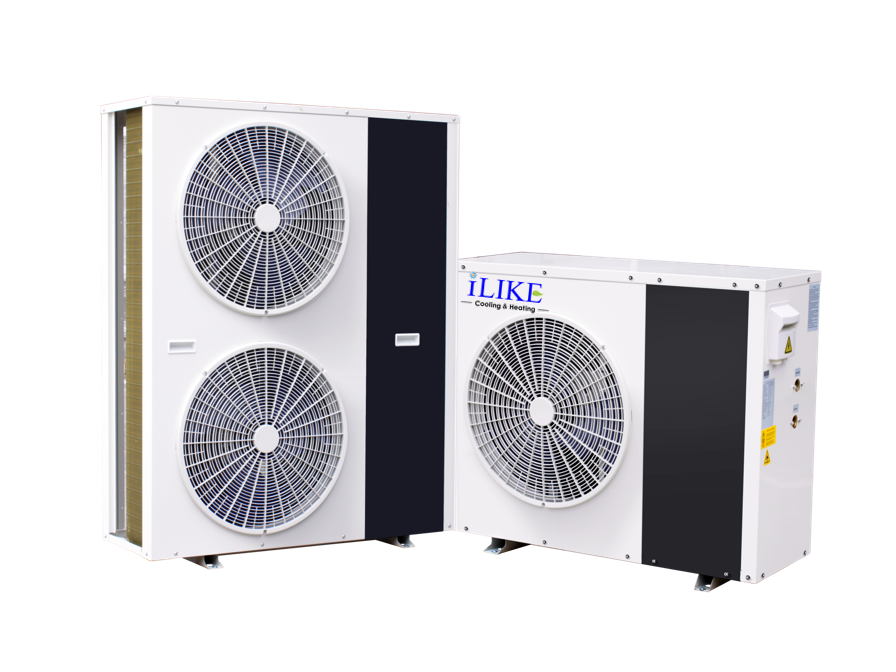

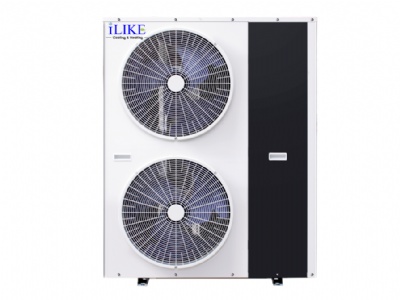

ILIKE DC-Inverter Heat Pump For Heating & Cooling And Domestic Hot Water Specifications
| Model | LKHP030-AHP | LKHP050-AHP | LKHP060-AHP | LKHP060-AHP | LKHP080-AHP | |
| Nominal Heating Capacity | 9 | 15 | 17 | 17 | 22 | |
| Nominal Heating Condition | Ambient temperature（DB/WB）: 7/6℃,water temperature（In/Out）： 30/35℃ | |||||
| Compressor Brand |  Panasonic EVI compressor | |||||
| Refrigerant Type | R32 | |||||
| Casing | Epoxy-polyester painting | |||||
| Power Supply | 220V～240V/50HZ | 380V～415V/50HZ | ||||
| Condenser Type | Danfoss plate heat exchanger | |||||
| Evaporator type | Inner grooved cooper tube with hydrophilic aluminums fins | |||||
| 4-Way Valve | SANHUA | |||||
| Expansion Valve | Danfoss electronic expansion valve | |||||
| Fan | Axial fan with inverter motor | |||||
| Fan Qty | One | Two | ||||
| Control | PCB+Touch screen | |||||
| Heating | Heating Capacity Range (kW) | 3.3～11KW | 6.5～19.8KW | 7.5～23KW | 7.5～23KW | 10.2~31KW |
| Heating Power Input Range(kW) | 0.6～3.5KW | 1.1～6.0KW | 1.3～7.0KW | 1.3～7.0KW | 1.6~8.5KW | |
| Heating Current Range(A) | 2.8~16.4A | 5.1~28.2A | 6.1~32.8A | 2.6～14.0A | 3.2~17.1A | |
| Cooling | Cooling Capacity Range (kW) | 2.5～8.8KW | 5.3～14.8KW | 6.2～17.3KW | 6.2～17.3KW | 8.1~23.0KW |
| Cooling Power Input Range(kW) | 0.6~3.2KW | 1.1~5.5KW | 1.2~6.0KW | 1.2~6.0KW | 1.5~7.8KW | |
| Cooling Current Range(A) | 2.8~14.9A | 5.1~25.8A | 6.1~28.1A | 2.6～12.0A | 2.8~14.9A | |
| ErP Level (55°C) | A++ | A++ | A++ | A++ | A++ | |
| Max. Power Input（A） | 3500W | 6000W | 7000W | 7000W | 8500W | |
| Max. Running Current（A） | 16.4A | 28.2A | 32.8A | 14.0A | 16.8A | |
| Water Flow(m3/h) | 1.29m³/h | 2.15m³/h | 2.58m³/h | 2.58m³/h | 3.01m³/h | |
| Water Connection (mm) | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Operation Ambient Temp. (℃) | -25~43℃ | |||||
| Max. Outlet Water Temp. (℃) | 60℃ | |||||
| Noise dB(A) | ≤53 | ≤57 | ≤58 | ≤58 | ≤60 | |
| Net Dimension (L/W/H) mm | 1116*415*916 | 1168*435*1442 | ||||
| Package Dimension (L/W/H) mm | 1150*450*1045 | 1205*470*1570 | ||||
| Net Weight (kg) | 80 | 117 | 120 | 120 | 140 | |
| Standard Package | Plywoox box | |||||
