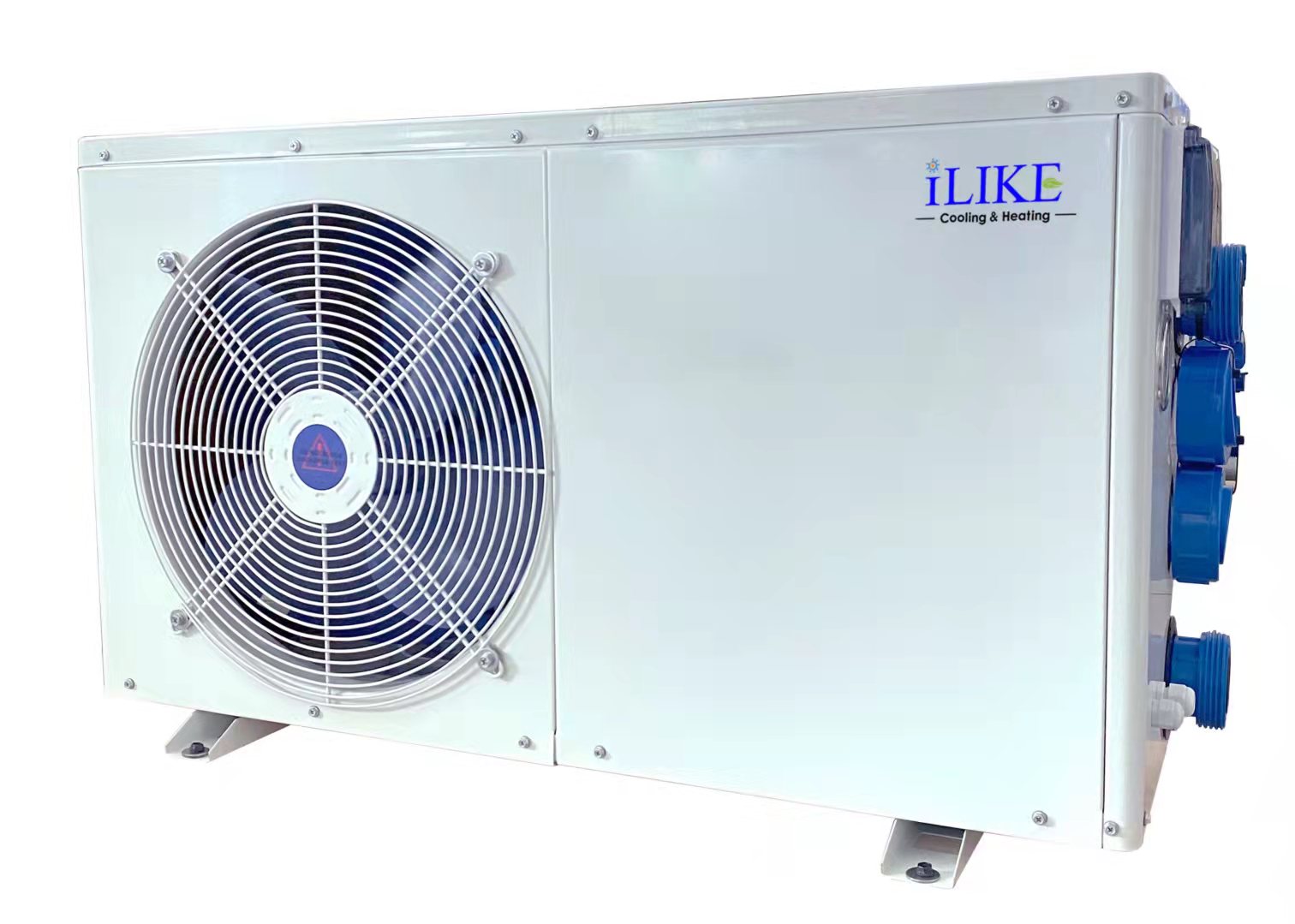

ILIKE Swimming Pool Heat Pump Specifications
| Model | LKHP75-PHP | LKHP95-PHP | LKHP110-PHP | LKHP140-PHP | LKHP170-PHP | LKHP200-PHP | LKHP240-PHP |
| Advised pool volume (m3) | 15~30 | 20~40 | 25~50 | 30~60 | 40~75 | 55~100 | 55~100 |
| Operating air temperature (℃) | -7 ~43 | ||||||
| Performance Condition: Air 27°C, Water 26°C, Humidity 80% | |||||||
| Heating capacity (kW) | 7.50~1.92 | 9.50~2.10 | 11.00~2.50 | 14.00~3.15 | 17.00~3.75 | 20.00~4.00 | 24.00~4.80 |
| Heating Capacity(Btu) | 25500~6528 | 32300~7140 | 37400~8500 | 47600~10710 | 57800~13090 | 68000~13600 | 81600~16320 |
| Consumed power (kW) | 1.15~0.13 | 1.46~0.14 | 1.83~0.17 | 2.15~0.21 | 2.62~0.25 | 3.33~0.27 | 4.00~0.32 |
| COP | 6.5~14.8 | 6.5~15.0 | 6.0~14.7 | 6.5~15.0 | 6.5~15.0 | 6.0~14.8 | 6.0~15.0 |
| COP at 50% capacity | 10.50 | 11.00 | 11.00 | 10.50 | 11.00 | 11.00 | 11.00 |
| Performance Condition: Air 15°C, Water 26°C, Humidity 70% | |||||||
| Heating capacity (kW) | 5.80~1.42 | 7.2~1.50 | 8.5~1.65 | 10.7~2.40 | 13.0~2.65 | 15.6~2.85 | 18.7~3.42 |
| Heating Capacity(Btu) | 19720~4828 | 24480~5100 | 28900~5610 | 36380~8160 | 44200~9010 | 53040~9690 | 63580~11630 |
| Consumed power (kW) | 1.15~0.20 | 1.43~0.21 | 1.77~0.23 | 2.12~0.34 | 2.58~0.36 | 3.25~0.40 | 3.89~0.49 |
| COP | 5.0~7.1 | 5.0~7.2 | 4.8~7.2 | 5.0~7.1 | 5.0~7.4 | 4.8~7.0 | 4.8~7.0 |
| COP at 50% capacity | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 | 6.50 |
| Performance Condition: Air 35℃,Water 28℃, Humidity 80% | |||||||
| Cooling capacity (kW) | 4.0 | 5.2 | 6.0 | 7.2 | 8.6 | 10.1 | 11.8 |
| Sound pressure at 1m dB(A) | 38~48 | 38~48 | 40~50 | 42~51 | 43~52 | 43~53 | 44~54 |
| Sound pressure of 50% capacity at 1m dB(A) | 40 | 40 | 41 | 43 | 44 | 44 | 45 |
| Sound pressure at 10m dB(A) | 18~25 | 18~25 | 19~26 | 22~27 | 23~30 | 24~31 | 25~32 |
| Heat exchanger | Spiral titanium tube in PVC | ||||||
| Casing | Metal Casing | ||||||
| Power supply | 230V/1 Ph/50Hz | ||||||
| Water Connection (mm) | Φ50 | ||||||
| Rated input current at air 15℃（A） | 5.1~0.9 | 6.3~0.9 | 7.8~1.0 | 9.3~1.5 | 11.3~1.6 | 14.3~1.8 | 17.8~2.3 |
| Advised water flux (m³/h) | 2~4 | 2~4 | 3~5 | 4~6 | 6~9 | 8~10 | 9~12 |
| Water Pressure Drop (max) kPa | 2 | 3 | 4 | 5 | 5 | 6 | 8 |
| Net weight/Gross weight（kg) | 62/70 | 62/70 | 64/72 | 77/87 | 81/91 | 81/91 | 86/96 |
| Dimensions（mm） | 980*402*636 | 1107*503*760 | |||||
| Refrigerant consumption（g） | 350g | 440g | 450g | 550g | 750g | 800g | 850g |
| Refrigerant | R32 | ||||||
| Compressor | Panasonic | ||||||
| Four-way valve | Sanhua | ||||||
| Expansion valve | Sanhua | ||||||
| Frequency drive board | Ruking Emerson | ||||||
| Operating water temperature (℃) *heating | 9 ~40 | ||||||
| Operating water temperature (℃) *cooling | 9 ~35 | ||||||
